Plain Weave Quarry Screen Mesh ±3% Wire Diameter Tolerance Cloth

Mam Ba Weaving Wire Cloth Screen Mesh

Mam Ba Screen Mesh MFG Company

MamBa Screen Mesh MFG Company is very experienced and good at manufacturing per-crimped woven wire screens, especially heavy duty ones. All our screen meshes are made to the highest quality specifications with a specific type of screen available to suite any of clients’ certain screening requirements.

With 40 years around in the screening media industry business line, our knowledge and expertise has evolved to where we can supply the clients with the optimal products and solution to their screening requirements at the lowest total cost. We offer a complete range of openings, wire diameters, materials and weave types enabling us to provide you with the optimum wire screen media product for your application. Our extensive inventories allow us to supply you the most suitable product to your exact applications.

Every employee in Mam Ba knows weaving process is not only determining the quality of wire cloth, but also representing our company’s reputation and personal honors. Except using better looms and accurate weaving techniques, our workers periodically check aperture size, diagonals, the squareness and flatness of the mesh on site during the production and make sure that its spacing remains consistent.

1. Aperture error: ≤3%,which is better than International Standards;

2. Wire diameter error: ±3%;

3. Diagonal error: ≤9mm every 2m;

It ensures every piece of wire cloth we made can be etching with remarkable sign of Mam Ba: square, flatness and right tightness.

Mam Ba Weaving Wire Cloth Screen Mesh Material:

Our special heat treatment 65Mn high carbon steel wire is a premium wire, offering the highest available

tensile strengths for maximum screen life while maintaining

superior ductility for impact and wear resistance.

Available in a vast array of apertures and wire diameters.

Carbon Steel Wire Parameter:

Stainless Steel Wire Paramter:

Opening size:

1 - 152.4 mm

Wire diameter:

0.5 - 19.05mm

Hole type: square, rectangular and long slot.

Supplied dimensions:

as required by customer.Rolls or Cut to Flat Plate

Weave Types

Edge Types:

Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.

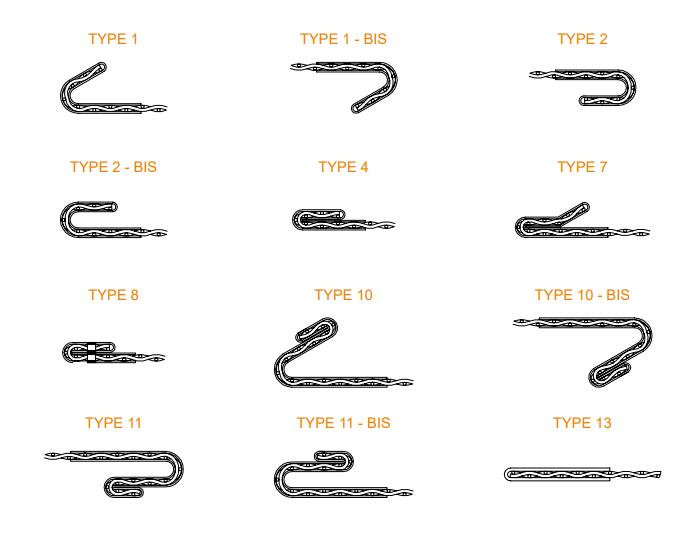

Hook and Edge

1.Our hook making adopts the electromagnetic coil heating process. All hooks are one-time forming. There are different type of hooks and edges available.

2.We can provide wire cloth with or without hooks and wire cloth rolls in different size according to client’s requests.

Installation instructions:

the screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.

Screen Attributes

• Cutting edge micro-grain structure

• Strong enough to withstand trauma or product impact, vibration fatigue and stress of vibratory units

• Longer screen life reduces screen changes, saves downtime and reduces cost per ton

• Uniform hardness and wire diameter for increased wear life

• Offered in space, mesh, slotted openings and anti-blinding designs

Advantages

• Saves downtime and costs

• Wears thin and smooth for predictable screen replacement and a healthier bottom line

• Spend less time changing screens and more time generating product

• Increases profitability

Application:
applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.

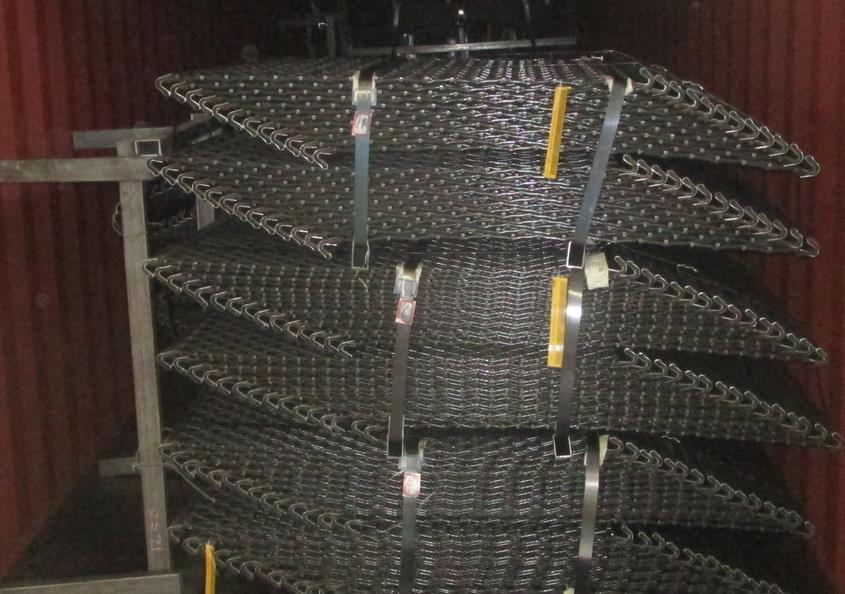

Package and Shipment:

plain weave quarry screen mesh

1mm aperture quarry screen mesh

high carbon steel quarry screen mesh
